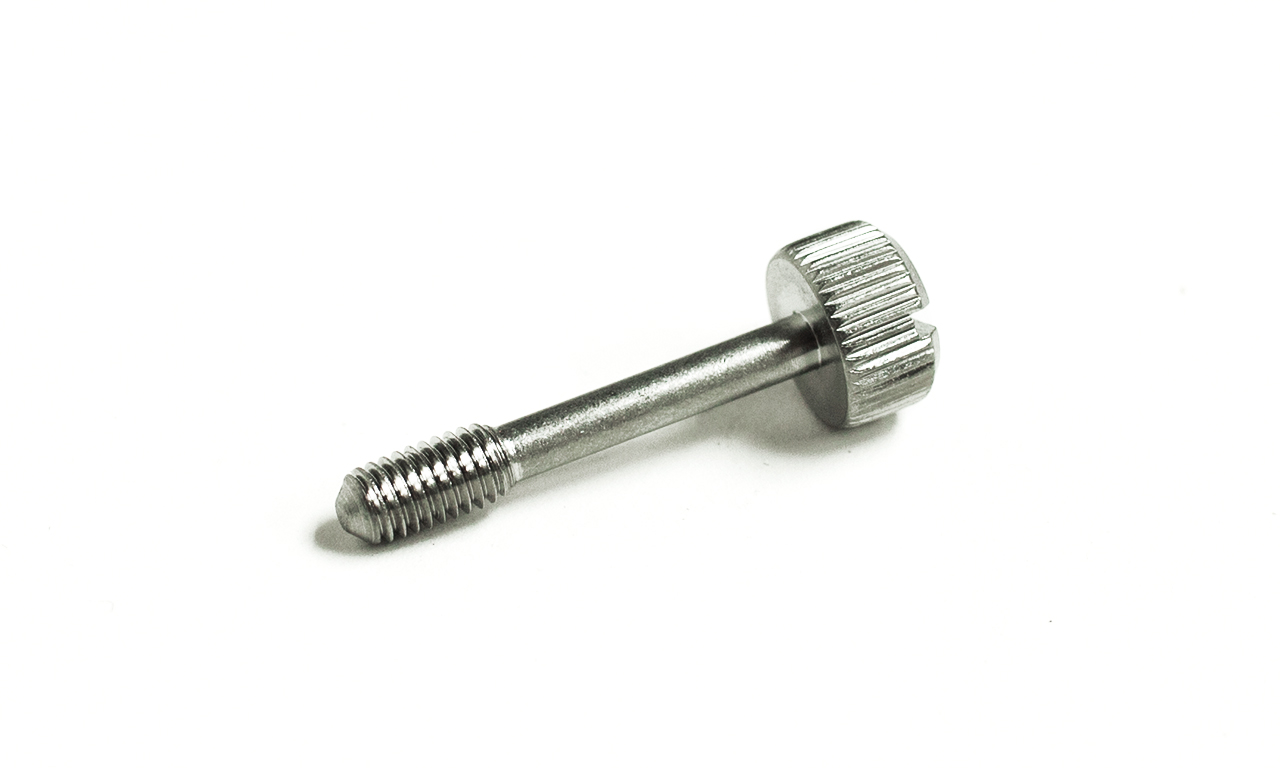

BCS Series

These polished, stainless steel screws offer a simple, straight-forward captive solution. Available as standard with a slotted drive, low volume custsom parts are available with custom drives, materials and lengths.

Applications

  • Available as standard in corrosion-resistant 300 stainless steel
  • Large knob allows for hand actuation

Parts List Swipe this way

Part Numberthreaddriveluscrew_materialfinishknob_style
BCS-M5S9-SB5 mmSlotted23.9 (0.94)14.2 (0.56)Stainless SteelBlack OxideFull Knurl
BCS-M5S10-SB5 mmSlotted25.4 (1.00)16 (0.63)Stainless SteelBlack OxideFull Knurl
BCS-M5S11-SB5 mmSlotted26.9 (1.06)17.5 (0.69)Stainless SteelBlack OxideFull Knurl
BCS-M5S12-SB5 mmSlotted28.7 (1.13)19 (0.75)Stainless SteelBlack OxideFull Knurl
BCS-M5S13-SB5 mmSlotted30.2 (1.19)20.6 (0.81)Stainless SteelBlack OxideFull Knurl
BCS-M5S14-SB5 mmSlotted31.8 (1.25)22.3 (0.88)Stainless SteelBlack OxideFull Knurl
BCS-M5S15-SB5 mmSlotted33.3 (1.31)23.9 (0.94)Stainless SteelBlack OxideFull Knurl
BCS-M5S16-SB5 mmSlotted35.0 (1.38)25.4 (1.00)Stainless SteelBlack OxideFull Knurl
BCS-M6S9-SB6 mmSlotted23.9 (0.94)14.2 (0.56)Stainless SteelBlack OxideFull Knurl
BCS-M6S10-SB6 mmSlotted25.4 (1.00)16 (0.63)Stainless SteelBlack OxideFull Knurl
